Fuse Box For Hyundai Elantra. 20112016 Hyundai Elantra Fuse List, Location YOUCANIC Fuse name [A] Protected component: HEATED MIRROR: 10: Driver/Passenger Power Outside Mirror, A/C Control Module: WIPER 2: 10: PCM, BCM: P/WINDOW RH: 25: ICM Relay Box(Burglar Alarm Relay), With Smart Key : A/T - Transaxle Range Switch, M/T - ECM, E/R Fuse & Relay Box(Start 1 Relay), Smart Key Control Module

Remove the fuse panel cover by pressing the tab and pulling it up Replace the fuse with a new one of the same rating

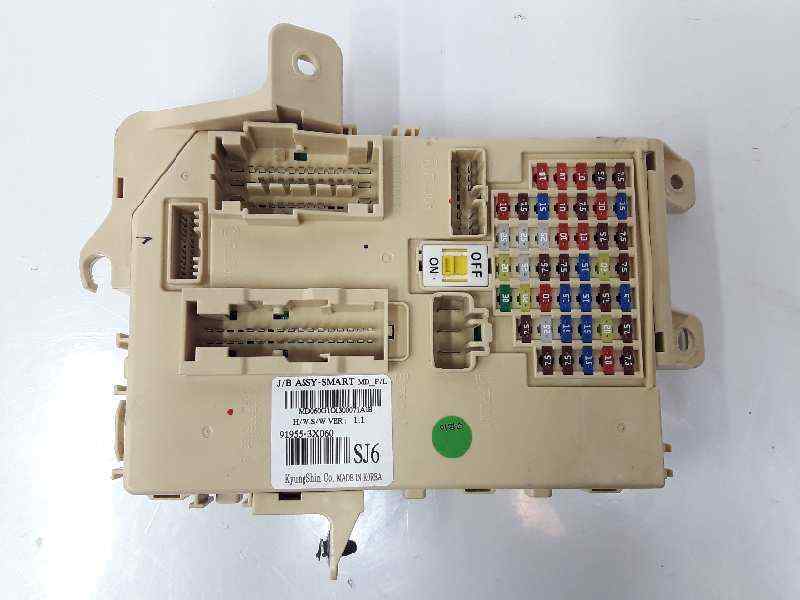

Fuse Box Diagram Hyundai Elantra (MD/UD), 2010 2015

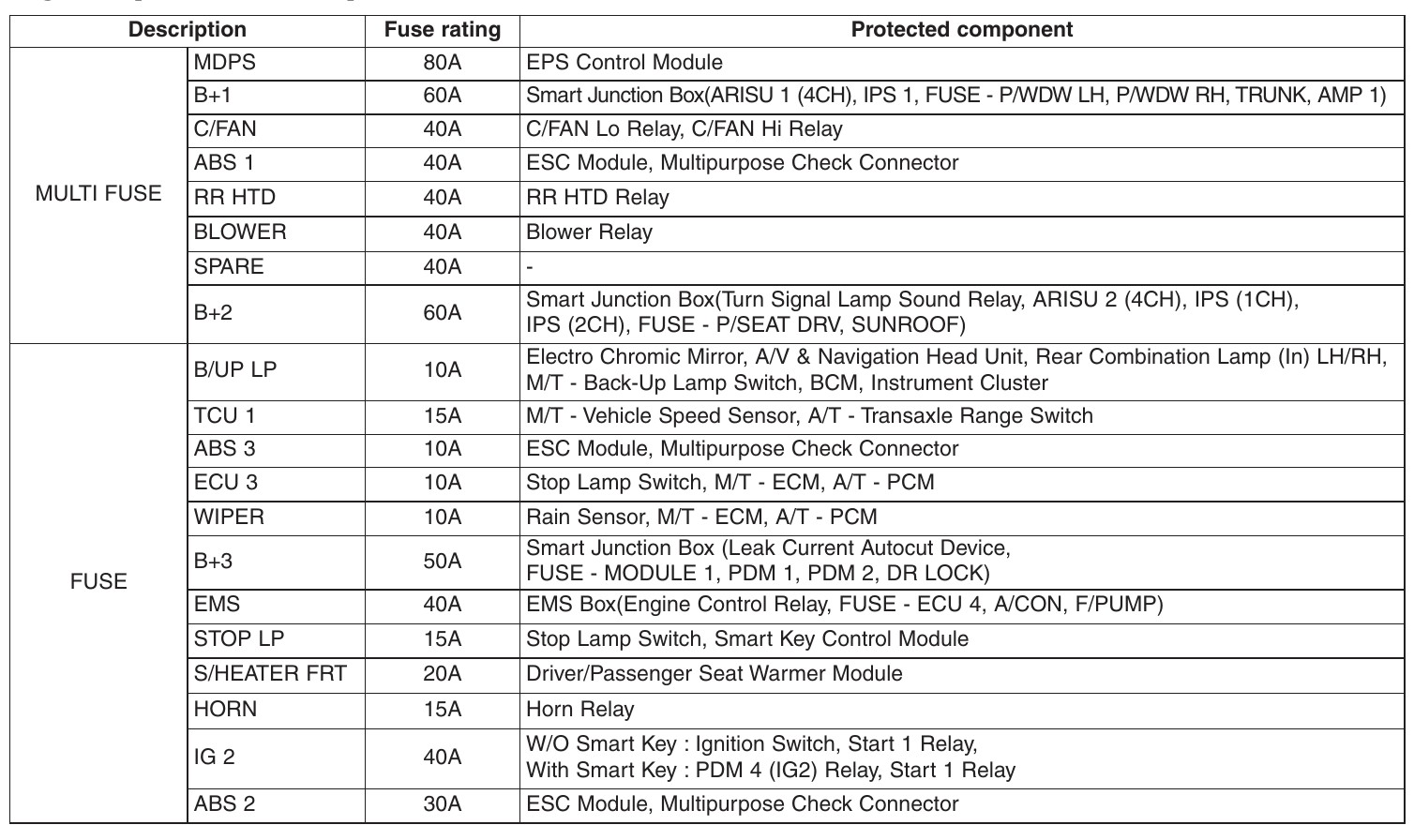

If the multi fuse is blown, consult an authorized HYUNDAI dealer Explore interactive fuse box and relay diagrams for the Hyundai Elantra Instrument panel Hyundai Elantra - fuse box diagram - instrument panel

Fuse Box Diagram Hyundai Elantra (MD/UD), 2010 2015. Here you will find fuse box diagrams of Hyundai Elantra 2017, 2018, 2019 and 2020, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay. Instrument panel (Driver's side fuse panel) Hyundai Elantra - fuse box diagram - instrument panel

2016 Hyundai Elantra fuse box diagram StartMyCar. Fuse box diagram (location and assignment of electrical fuses and relays) for Hyundai Elantra (MD/UD; 2011, 2012, 2013, 2014, 2015, 2016). Specifically, the 2011 to 2016 Hyundai Elantra models feature fuse boxes in two locations
